Recreating 10254. (with lots of questions)

SM465 in mine Keith.

Tim, I like the notebook idea too

Quote:

---

Originally Posted by 67M715

... For the xfer case whining, you can relocate the drive shaft and this goes away too...

---

But the transfer case whining is music to my ears. That is what makes my truck a Five-Quarter!

I'd need a big notebook. I just fix what breaks down, and keep going.

Eventually either the truck will be perfect or I'll be broke.:D

Scott

Quote:

---

Originally Posted by eimkeith

Well, I'm not opposed to good brakes!

I'm doing a search, but what is the Hydroboost for Dummies short version? Can I retain my power steering? Does it affect MC selection outside the typical fluid displacement/volume calcs?

---

Someone correct me if I'm wrong, but if I remember correctly the hydraboost works off your power steering pump, not positive but you may have to have a different/bigger pump. I've got a couple of 1ton Chevys parts trucks that I havent removed them off of yet, I'll take some pics so you can see them as they are from factory.

THAT would be extremely helpful - pictures would help me visualize that system.


keith.

(sent from my rotary dial phone.)

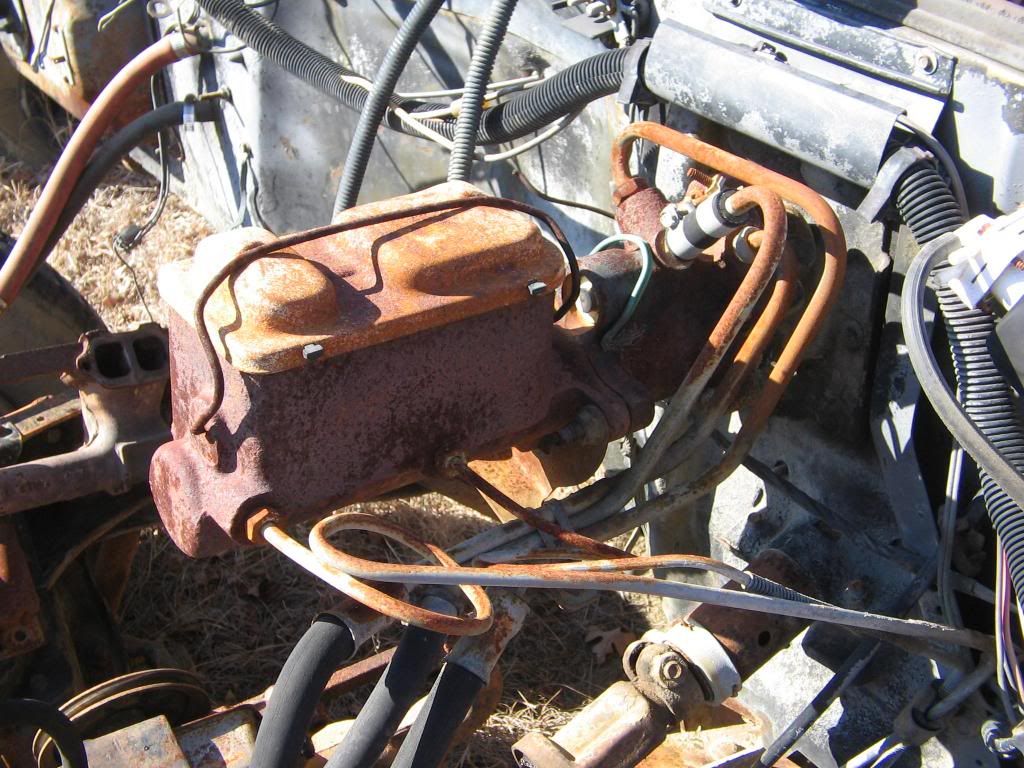

Here ya go, this one is on a '77 1 ton Chevy.

You got 3 lines leaving the Hydraboost, one goes to the gear box and 2 go to the pump, the 3rd line off the pump goes back to the gear box.

http://i1255.photobucket.com/albums/...ps917e41f5.jpg

http://i1255.photobucket.com/albums/...ps0b91c4e4.jpg

http://i1255.photobucket.com/albums/...psd2c12c9e.jpg

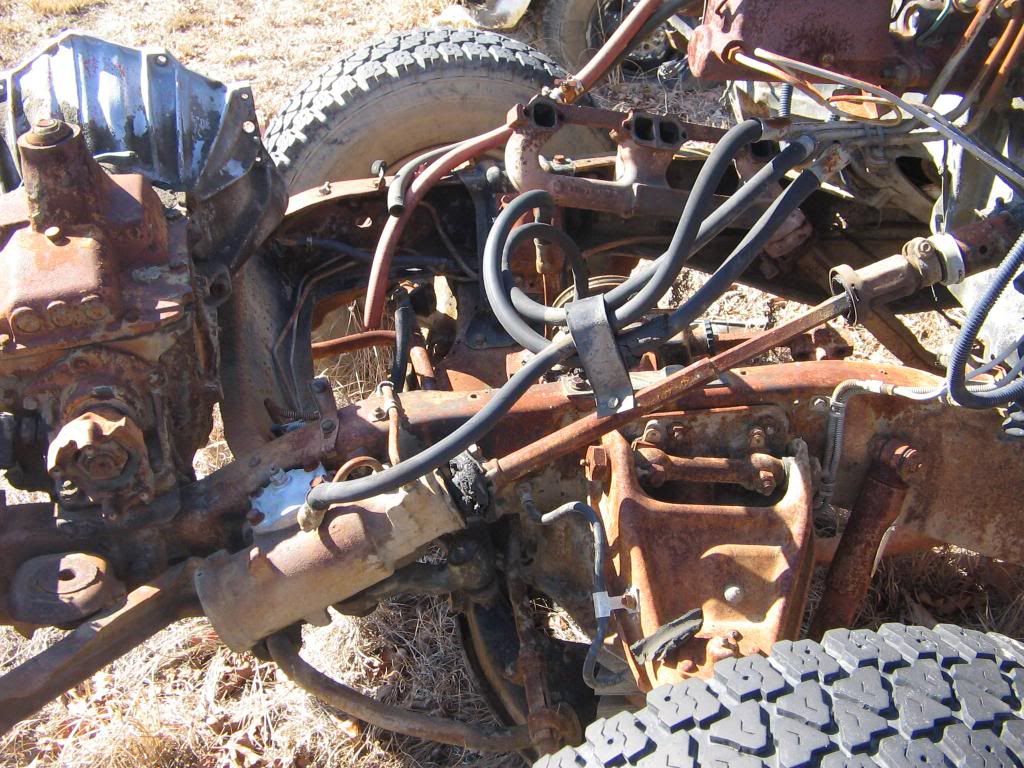

It's kinda hard to see here, but the line that is cut goes to gear box.
http://i1255.photobucket.com/albums/...ps1d4f9eb7.jpg

http://i1255.photobucket.com/albums/...ps3437cdfa.jpg

Hopes this helps, If you need more or better pics let me know,

Tracy

Thanks. I'm checking out the kit on eBay right now.

No problem. They're a pretty simple setup, if you need anything else just ask.

I have hydro boost. It stop fast
http://img.photobucket.com/albums/v1...s/IMAG0086.jpg

Does it cause a weird difference in pedal travel?

More specifically, does it feel out if place compared to clutch movement, throttle movement, shifter throw?


keith.

(sent from my rotary dial phone.)
