found one

Quote:

---

Originally Posted by MarknessMonster

I like the "stance" of your build; it's not too high. I think those mock-up wheels and tires are about perfect, as they don't stick out past the fenders and the height looks just right.

When you're all done with that truck, how would you like another one to work on? :)

---

i agree, but i came out a little taller than i had originally intended, but it will be fine. still not to tall to toss firewood into even after i build the 2 foot side extentions for the bed.

i would have to clear it with the "boss" she wants me to build her a toy next, but i am alway looking for something to do.
Ryan

Nice job Ryan. Next time you post pictures of a torched frame post some finished pictures with it. I would also agree radical approach for fitment of the radiator. But I too used what I had and made it work, so I could see myself doing something similiar because I had the know and materials. Can't wait to see more pictures keep them coming. I agree with Markness the trucks stance is very nice.

I'd add a small piece of advice for you, and you may already be aware of this:

When you mount the radiator, you should build a frame or some type of mount for it and not mount it solidly to the core support sheet metal. I mounted my aluminum radiator to the core support, and I am now noticing some small cracks on the mounting brackets welded to the tanks. I had to do some similar surgery to my core support to move the radiator a bit further forward for engine clearance, and I think it took some of the rigidity out of it, and when flexing on the trail, it puts more stress on the radiator now.

I am planning on a small tube frame to hold the radiator, that has a rubber mount system to isolate it from the body. I'll post it up when I build it.

As far as comittment, I;d say you're already pretty far along in that with the scope of the other work you've already completed. As always, nice work!

thanks todd, and markness.

using what i had was the main reason it all happened. the radiator was free, and you just can't beat that price.

as for finished pics, ask and you shall receive. the air ine was ice free today.

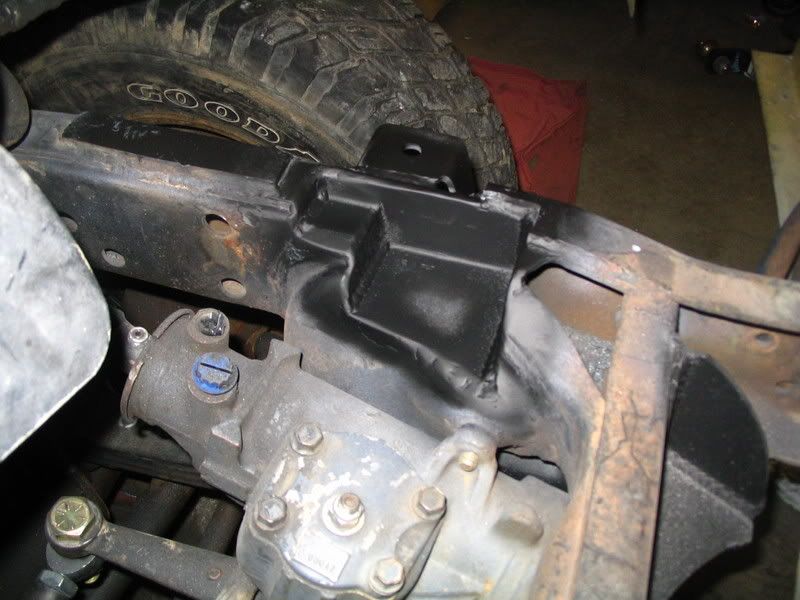

http://i94.photobucket.com/albums/l8...15/m715285.jpg

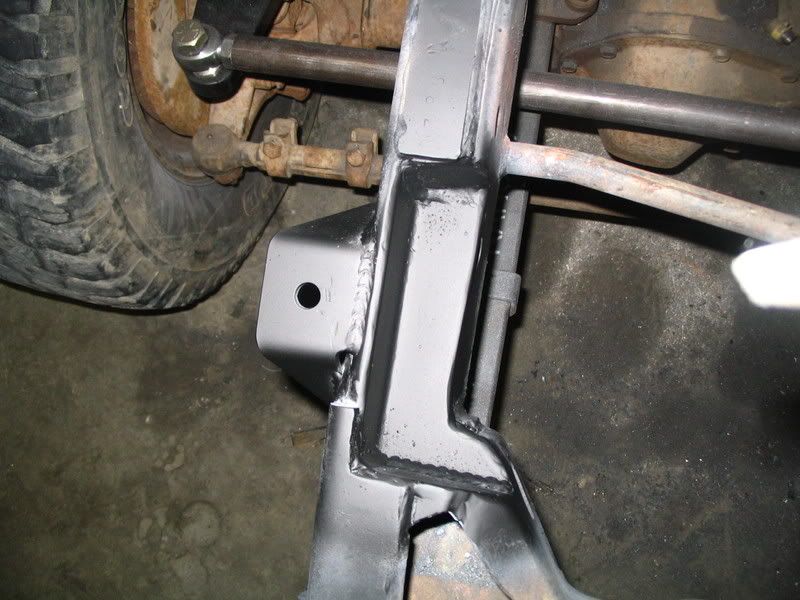

http://i94.photobucket.com/albums/l8...15/m715286.jpg

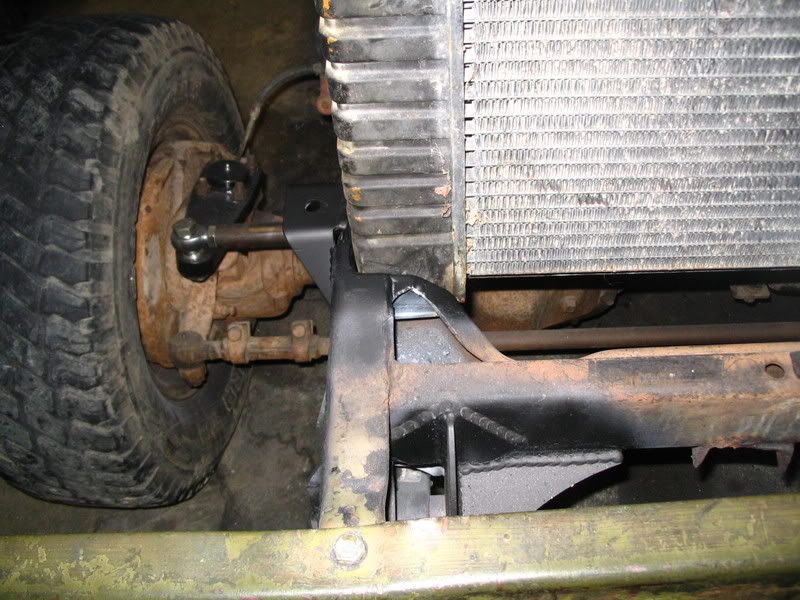

i will be adding some form of movement/vibration reducer to take up the extra space and keep the radiator from moving and flexing next week.

http://i94.photobucket.com/albums/l8...15/m715287.jpg

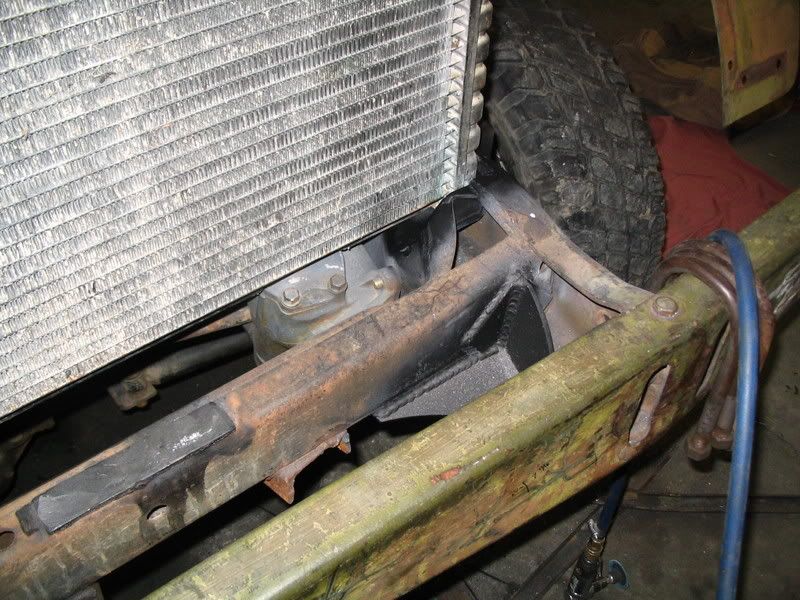

http://i94.photobucket.com/albums/l8...15/m715288.jpg

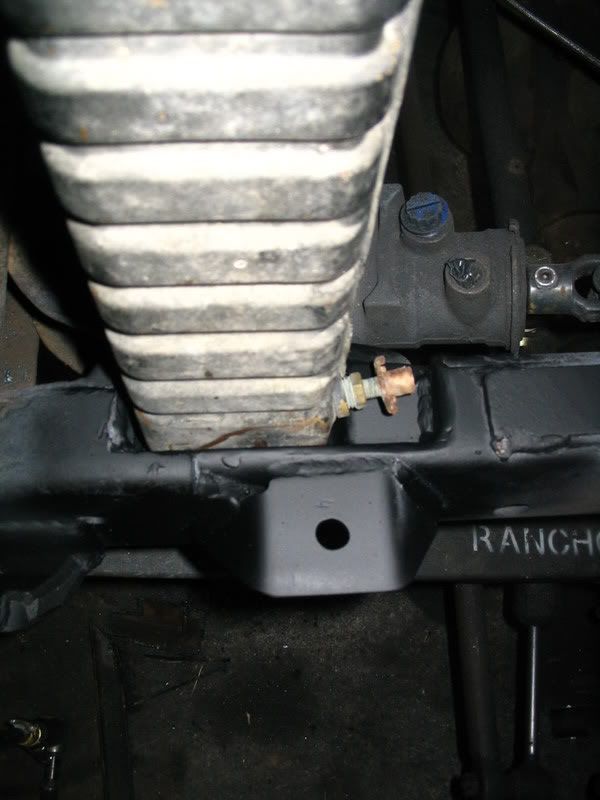

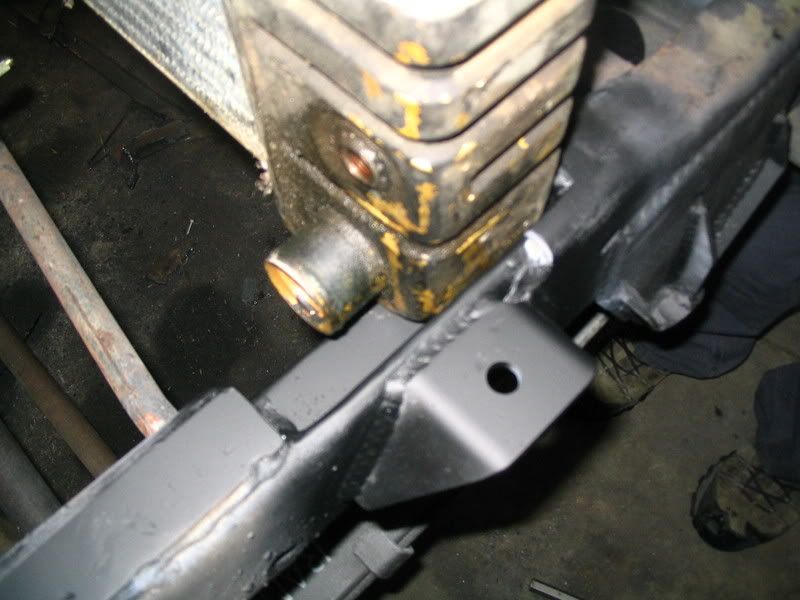

gonna have to do some hose searching at the parts store but thats nothing new. also just enough room to turn the petcock

http://i94.photobucket.com/albums/l8...15/m715289.jpg

http://i94.photobucket.com/albums/l8...15/m715290.jpg

the wife wanted to pose with our (my) pride and joy :oops:

http://i94.photobucket.com/albums/l8...15/m715292.jpg

ryan

Ryan, you do great work..and quick....looking fantastic!

I still want to ship my truck to you...if only I could afford it!

If you discussed this already, I completely missed it. But what's the deal with the mount on the inboard side of that spring. Did you tap some holes on the differential housing for those bolts, or is that how it comes from the factory and I'm just a Larry for even asking this question?

http://i94.photobucket.com/albums/l8...15/m715270.jpg


Oh, wait...that's the donor truck's axle, isn't it... So that's factory, huh? Never seen that before.

-- Larry

Tim,
that is factory chevy dana 60 stuff.

Randy,
thanks, i missed your post earlier. the radiator is setting in the frame buckets on some foam rubber isolators. i will make a "floating" clamp for the top that bolts to the core support to hold it down and from falling into the fan. it wont actually be mounted to the core support just using it as a locator.
ryan

That looks excellent! :)

Thanks!

Stock GM radiator hoses from the donor chevy fit the m715 with only 1.5 inches needing trimmed fromt he lower. that is exciting since i wont have to worry about funny part numbers or impossible to find parts if i am out in the boonies.

i bolted the front clip together, and made my top rad mount, but i left the camera at the shop. hopefully some pictures tomorrow.

i also ordered some high zoot header gaskets and a proportioning valve along with some other brake line parts, so that will be on the list as soon as it arrives
Ryan

Nice work 'Roo......thanks for providing some motivation to go out and work on my project.
